Model: PF350-S

Item #: 502000

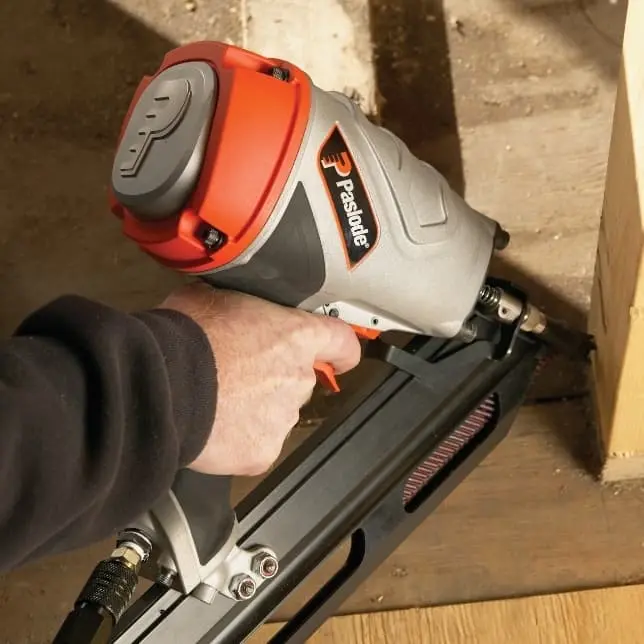

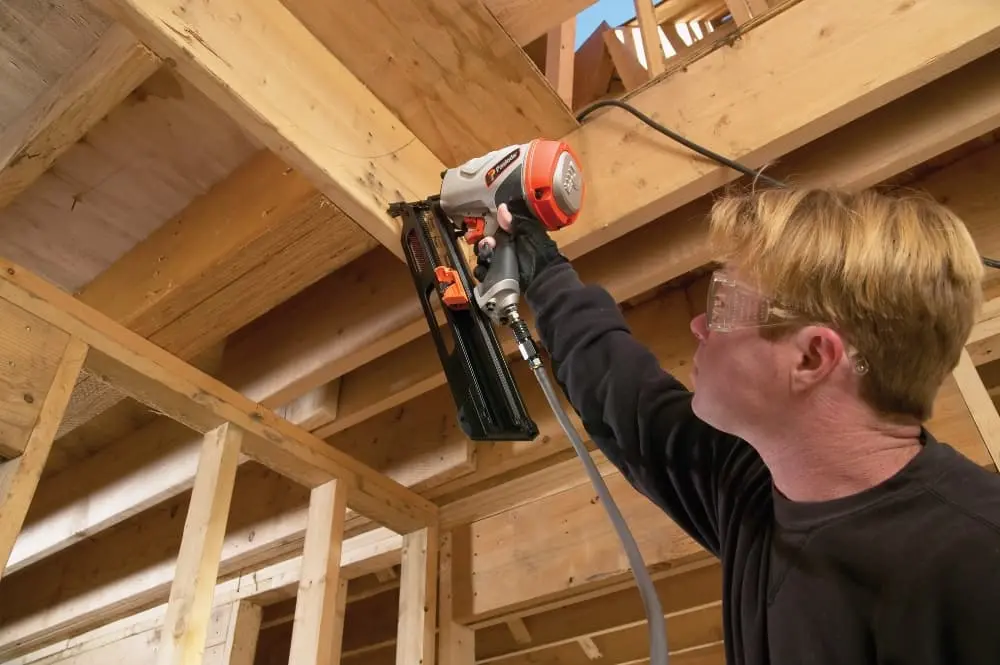

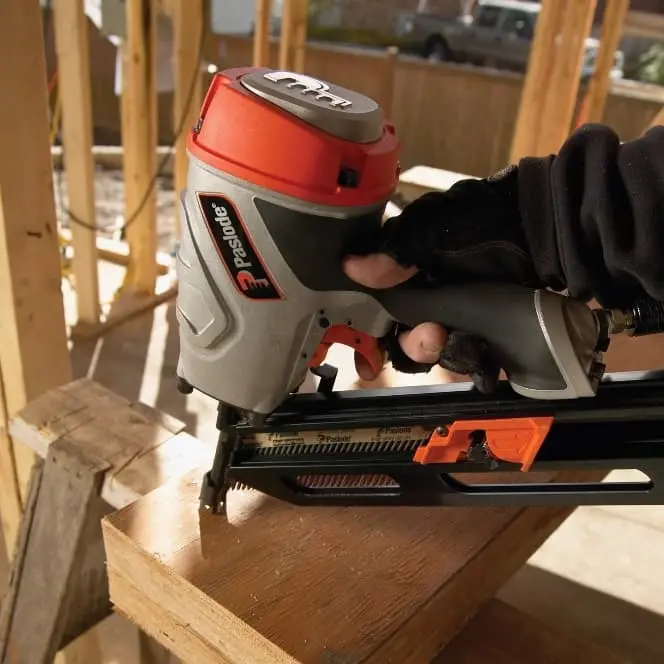

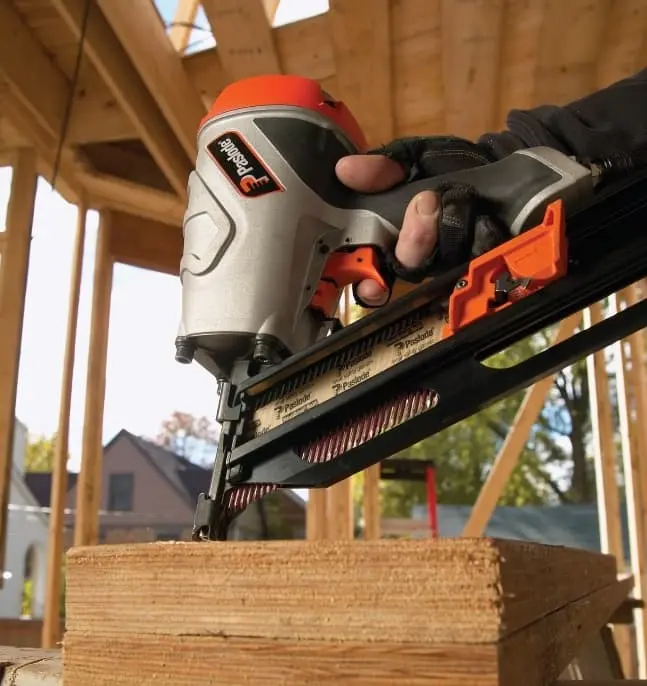

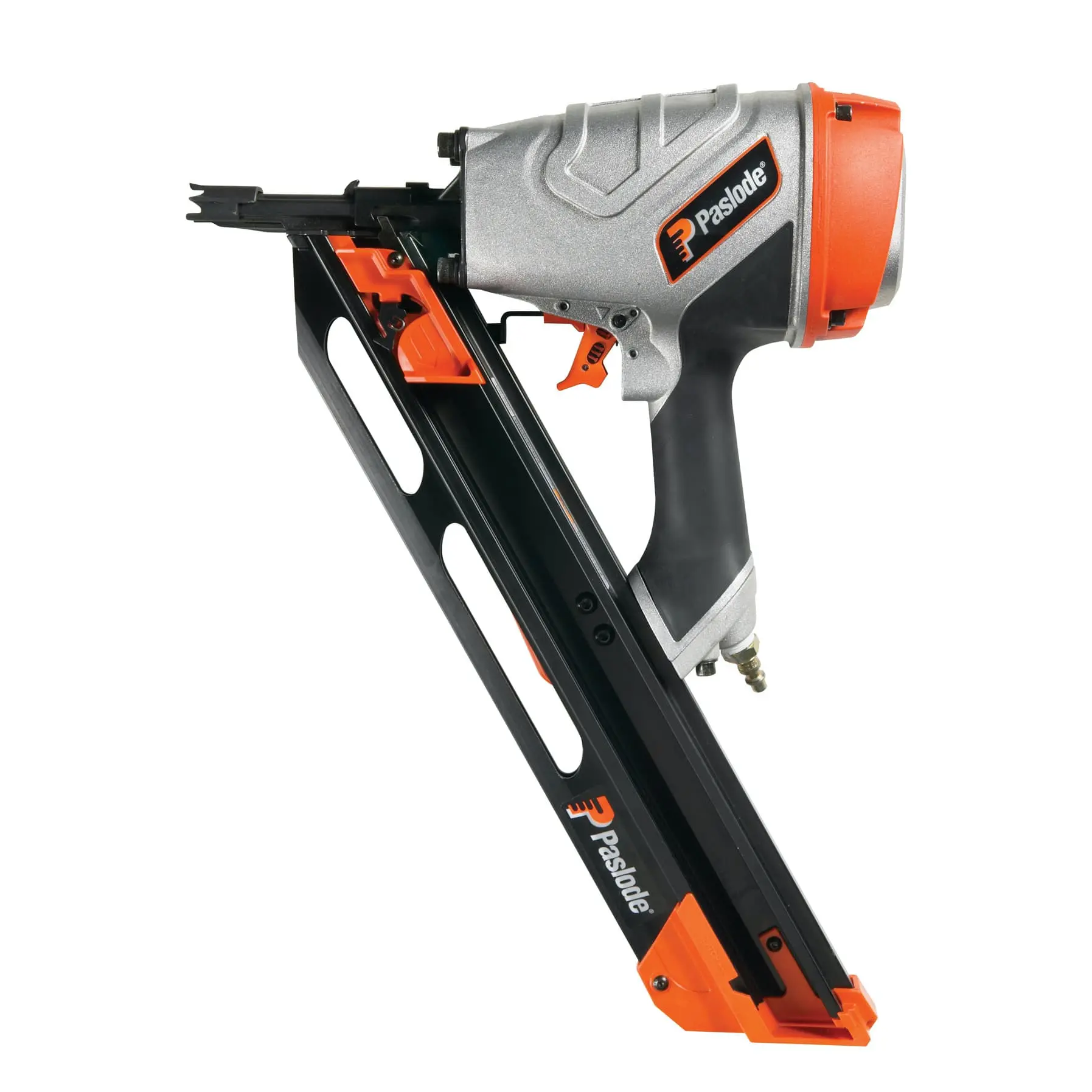

Pneumatic PowerFramer 30 Degree Framing Nailer (DISCONTINUED)

Our Pneumatic PowerFramer 30 Degree Framing Nailer is built to tackle heavy–duty framing jobs. It has the power to drive nails into the hardest engineered lumber.

Weighs only 7.5lbs
Fire up to 6 nails per second
Reduce jams and misfires by using genuine Paslode nails

Paslode pneumatic nailers give you reliable framing performance that saves time with less maintenance.

Where to Buy

502000

Pneumatic PowerFramer 30 Degree Framing Nailer (DISCONTINUED)

Where to Buy

Features & Applications

DURABLE

Reliable performance, minimum service.

POWERFUL

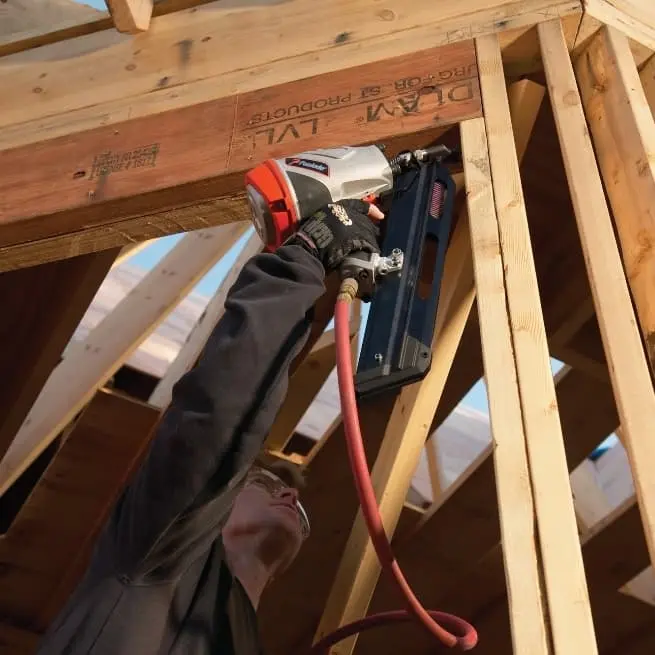

It drives nails flush, even in LVL.

LIGHTWEIGHT

Works faster with less fatigue.

Features

Operating Features

Tool Free Adjustable Depth of Drive – quickly get the right nail depth
Dual–mode Trigger – for sequential or bump fire operation
Aggressive Tooth Tip – ideal for toe nailing
Nail Lock–out – prevents blank firing and promotes driver blade durability
Bypass Follower – fast and easy loading

Design Features

Rear Load Magazine – for easy fastener changes
Rafter Hook – moves out of the way when not needed

Applications

Wall Studs
Truss Attachments
Wall Panels
Rim & Floor Joists
Roof Decking
Blocking
Fencing

Manuals & Specs

Manuals & Documentation

Product Specs

Tool Model

PF350-S

Tool Weight

7.5 lbs.

Item #

502000

Tool Dimensions

18" x 5" x 13"

Tool Warranty

1-year full warranty; 5-year extended limited warranty

Tool Speed

6 nails per second

Power Specs

Firing Mode

Sequential, Bump Fire

Operating Pressure

80-120 p.s.i. (5.5-8.3 bars)

Air Requirement

.098 SCF/cycle

Fastener Specs

Fastener Type

Paslode RounDrive® 30° Offset Full Head (Brite or Galvanized), Clipped Head Brite 30° Framing Nails

Fastener Capacity

Fastener Diameter

.113 - .131

Fastener Length

2”- 3-1/2”

Fastener Angle

30°

Compatible Products

Fasteners

Brite 30 Degree Framing Nails

Hot Dipped Galvanized 30 Degree RounDrive® Framing Nails

Brite 30 Degree Framing Nails

Hot Dipped Galvanized 30 Degree RounDrive® Framing Nails

FAQs

Does Paslode offer tool repair kits?

Paslode offers the following repair kits:

219305 / Cordless Framing Tune Up Kit for 900420 (IMCT)
219235 / For F350S / 501000 Repair Kit
219426 / For F350S / 50100 Premium Rebuild w/ main valve assembly
219224 / Trigger Valve Repair Kit for 3000, 4000, 5000 Series, F350S
219377 / Cordless Framing Tune Up Kit for CF325/CF325Li/XPmodels - For PF350S / 502000 and DF350S
219352 / 502000

The kits can be purchased at a sales location nearest you or online:

How do I order a part online?

Genuine Paslode replacement parts, tune up kits, accessories, and repair service can be purchased online at itwconstructionparts.com.

Does Paslode make air compressors?

No, Paslode does not manufacture air compressors. However, some of our distributors sell compressors with the Paslode name on them.

What type of oil should I use in my Pneumatic Nailer?

Use only pneumatic tool oil. Paslode sells a summer grade oil and a winter grade oil with antifreeze. The part number for Paslode pneumatic oil is 403720 and the part number for the oil with antifreeze is 219090. Note: Lubricating oil with antifreeze should only used with temperatures below 32degF.

Do not use WD40, motor oil, transmission fluid or aerosol lubricants. These lubricants will destroy the o-rings and seals inside the nailer.

Can I use something other than Paslode Degreaser Cleaner to clean my nailer?

Paslode Degreaser Cleaner is specially formulated for Paslode Cordless and pneumatic nailers. Other products may damage electrical components, plastic parts, and rubber parts. They may also leave a residue which could cause damage to the nailer or injury to the operator of the nailer.

What type of oil should I use after the nailer has been cleaned?

Use only Paslode Cordless Tool Lubricating Oil part number 401482. It is specially formulated to withstand the high temperatures generated by Cordless nailers. Using other oils can cause the rapid build-up of combustion residue leading to poor nailer performance and more frequent cleanings.

Will other brands of nails work in my Paslode Nailer?

Paslode nailers and fasteners are engineered to work together as a system. Other brands of nails may not be designed or manufactured to the same specifications or quality standards as Paslode. Using nails that do not meet Paslode’s specification may cause damage to the tool and injury to the operator or bystanders, and may void warranty.

How do I find a Paslode Authorized Service Center?

To locate your nearest service location, click the "Find Service Center" tab on the "Where to Buy" page, and enter your zip code. Paslode recommends that tools needing service be repaired through your local Factory Authorized Service Network.
