Model: F150S-PP

Item #: 515850

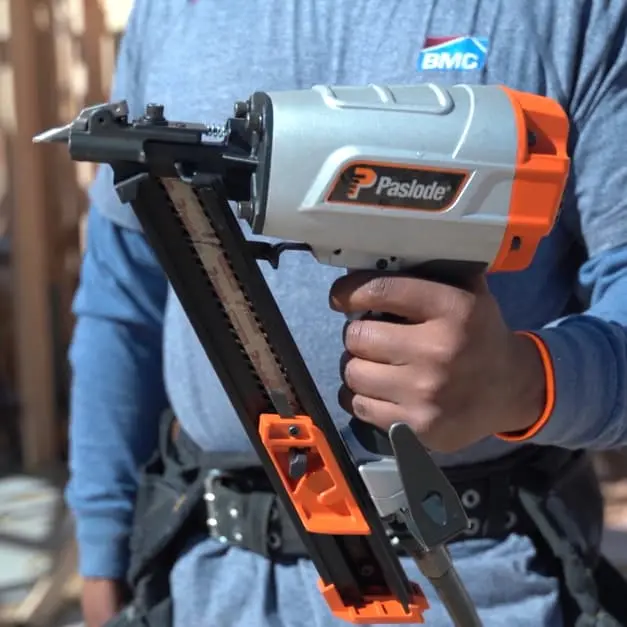

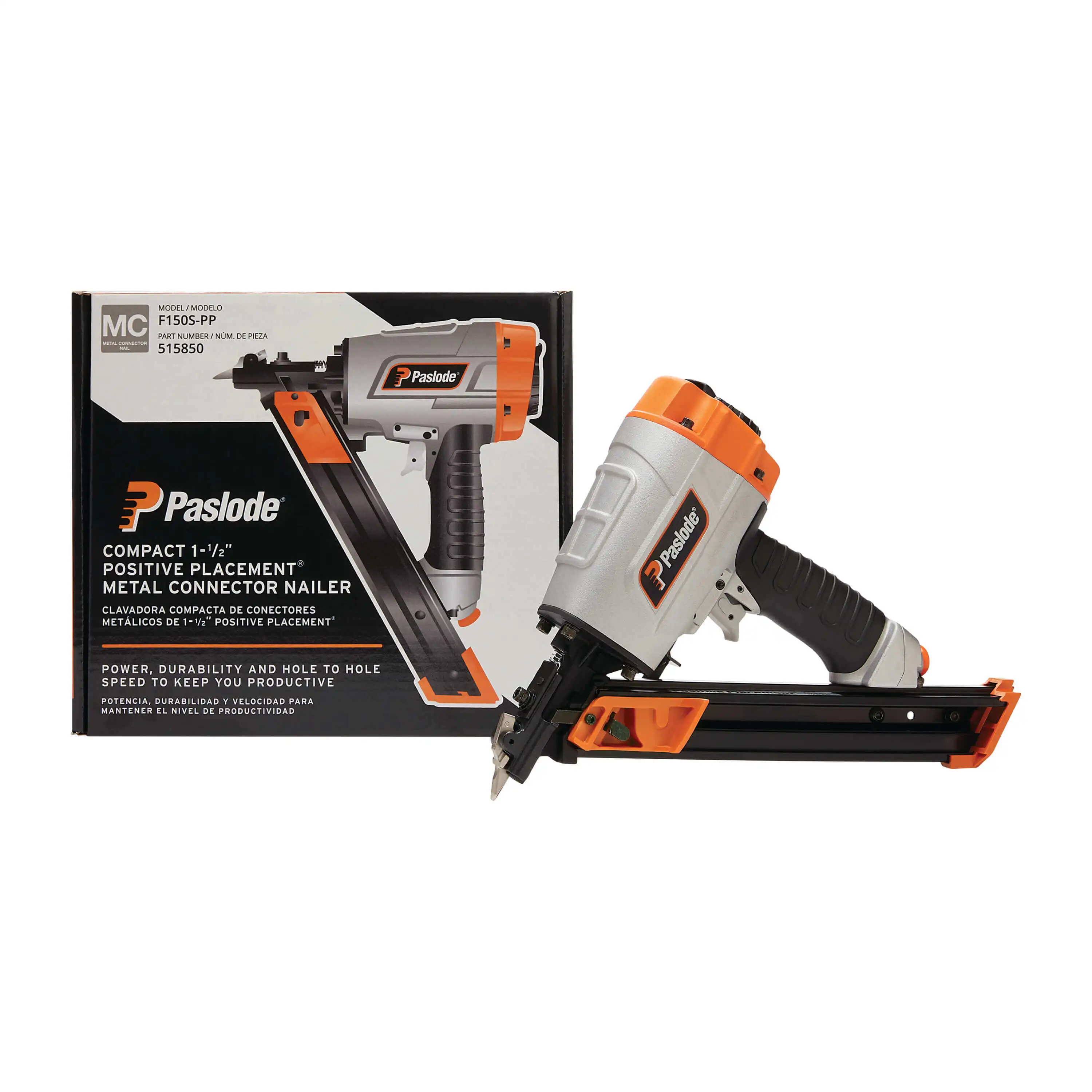

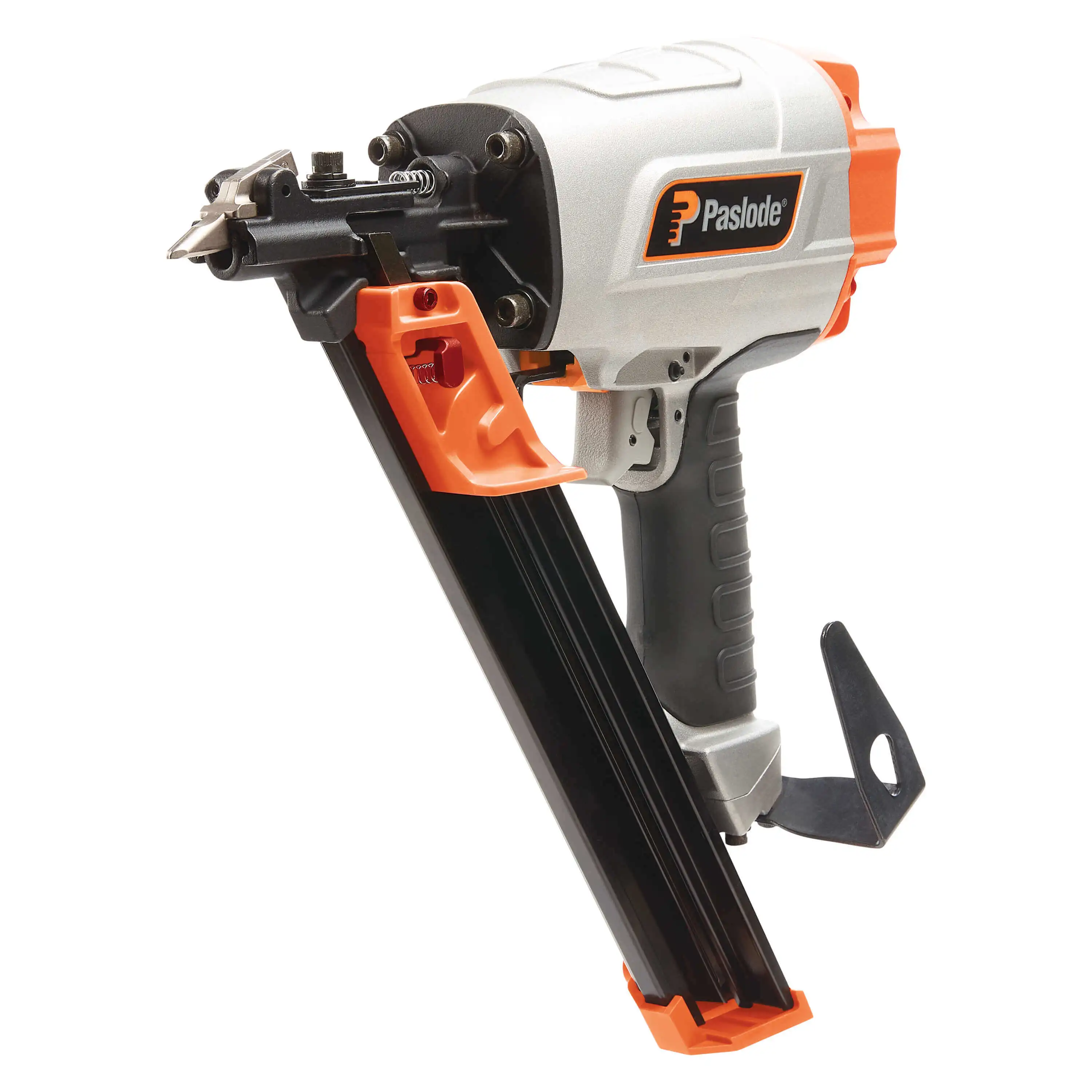

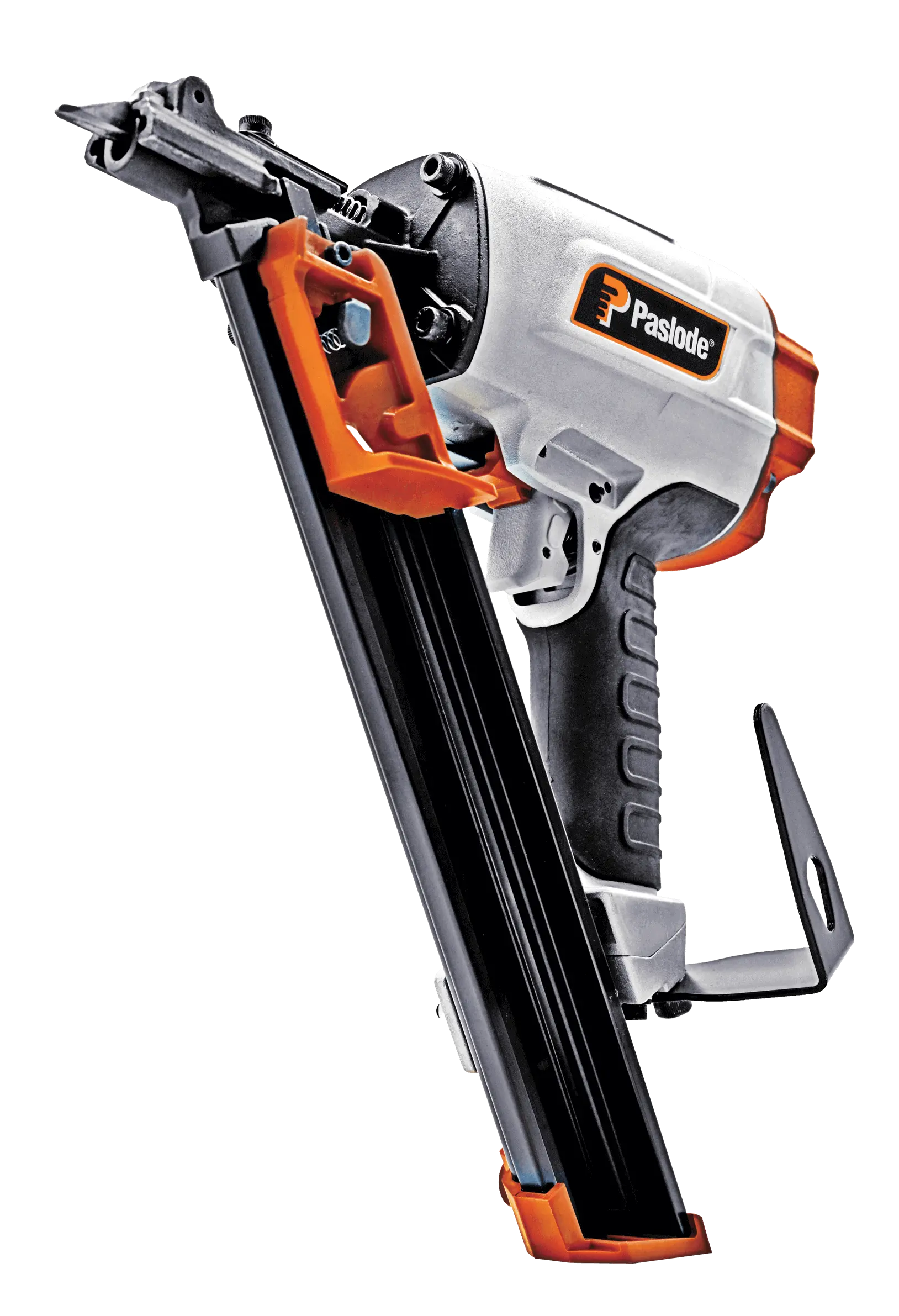

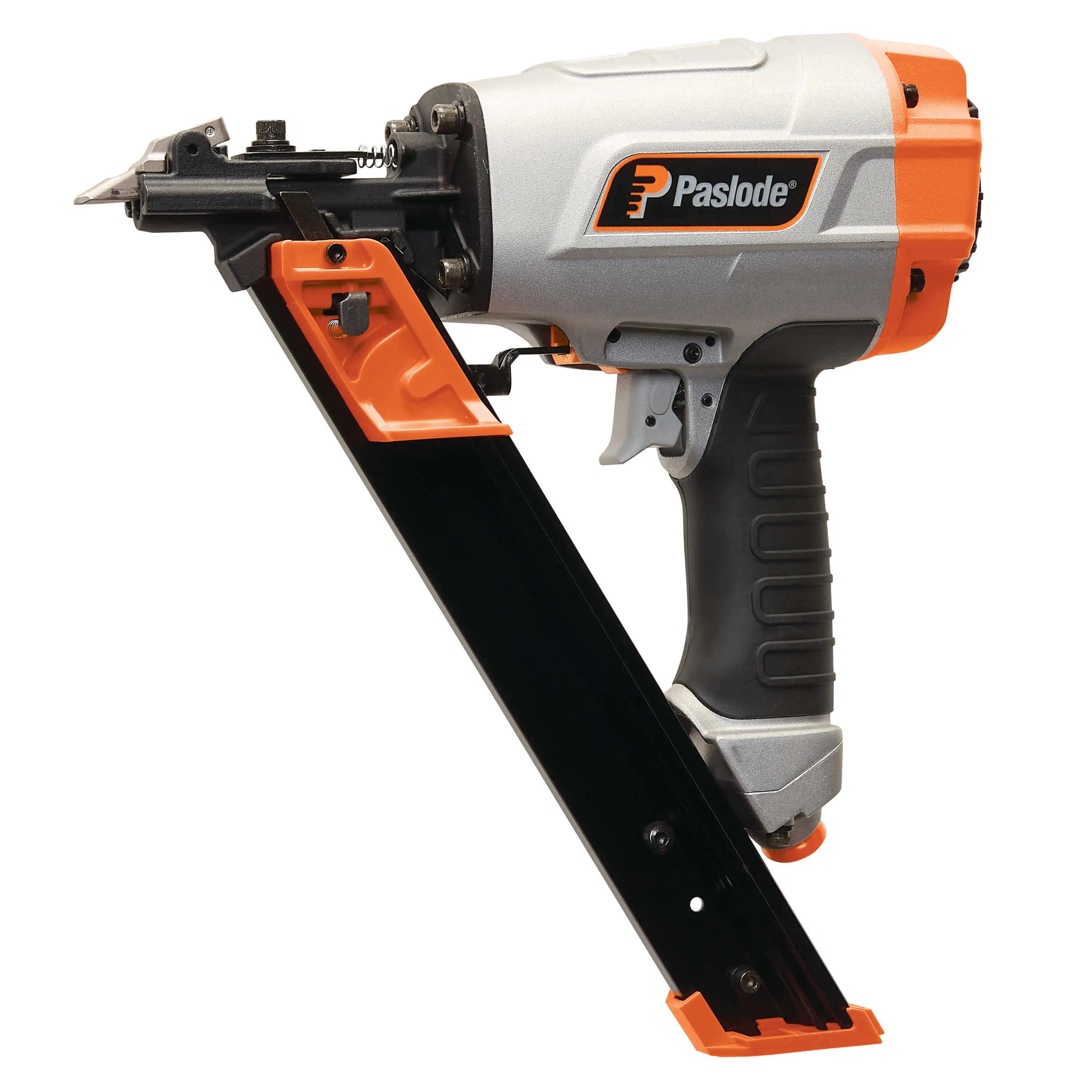

Pneumatic 1–1/2" Positive Placement® Metal Connector Nailer

Our Pneumatic 1–1/2" Positive Placement Metal Connector Nailer has Paslode's proprietary Positive Placement nose tip, which allows you to quickly and accurately find metal connector holes and drive nails with precision and speed.

Weighs only 6.25lbs
Work in tight spaces with its compact design
Limits nail jams with its crescent shaped driver blade
Further reduce jams and misfires by using genuine Paslode nails

Paslode pneumatic nailers give you reliable performance that helps you maximize jobsite productivity.

Where to Buy

515850

Pneumatic 1–1/2" Positive Placement® Metal Connector Nailer

Where to Buy

Features & Applications

POWER

Powerful motor drives nails flush, even into engineered lumber.

SPEED

Lightweight with a jam-free design for fastest hole to hole speed.

ACCURACY

Probe quickly locates hole and guides nails for maximum accuracy

Features

Operating Features

Nose Probe – locates hole and guides nail for maximum accuracy
Adjustable Depth of Drive – quickly get the right nail depth
Crescent Shaped Driver Blade – prevents nail jams
Nail Lock–out – prevents blank firing and promotes driver blade durability
Adjustable Exhaust Cap – deflects air away from user
Bypass Follower – fast and easy loading

Design Features

Ergonomic Handle – ergonomic design provides greater comfort
Inline Magazine – narrow design for balance, maneuverability, and unobstructed operation
On Board Allen Wrench – readily accessible to adjust depth of drive and service tool

Applications

Joist Hangers
Anchors
Straps
Hurricane Ties

Manuals & Specs

Manuals & Documentation

Product Specs

Tool Model

F150S-PP

Tool Weight

6.25 lbs.

Item #

515850

Tool Dimensions

13" x 3.7" x 11.7"

Tool Warranty

1-year full warranty; 5-year extended limited warranty

Tool Speed

3 nails per second

Power Specs

Firing Mode

Sequential

Operating Pressure

90 - 120 p.s.i. (6.2 - 8.3 bar)

Air Requirement

.086/cycle

Fastener Specs

Fastener Type

Brite Heat Treated and Mechanically Galvanized Heat Treated Positive Placement Metal Connector Nails

Fastener Capacity

1-strip

Fastener Diameter

.131 - .148

Fastener Length

1-1/2" only

Fastener Angle

30°

Compatible Products

Fasteners

Brite Heat Treated Positive Placement Metal Connector Nails

Mechanical Galvanized Heat Treated Positive Placement Metal Connector Nails

Brite Heat Treated Positive Placement Metal Connector Nails

Mechanical Galvanized Heat Treated Positive Placement Metal Connector Nails

Accessories

Pneumatic Lubricating Oil 16oz

FAQs

Does Paslode offer tool repair kits?

Paslode offers the following repair kits:

219305 / Cordless Framing Tune Up Kit for 900420 (IMCT)
219235 / For F350S / 501000 Repair Kit
219426 / For F350S / 50100 Premium Rebuild w/ main valve assembly
219224 / Trigger Valve Repair Kit for 3000, 4000, 5000 Series, F350S
219377 / Cordless Framing Tune Up Kit for CF325/CF325Li/XPmodels - For PF350S / 502000 and DF350S
219352 / 502000

The kits can be purchased at a sales location nearest you or online:

How do I order a part online?

Genuine Paslode replacement parts, tune up kits, accessories, and repair service can be purchased online at itwconstructionparts.com.

Does Paslode make air compressors?

No, Paslode does not manufacture air compressors. However, some of our distributors sell compressors with the Paslode name on them.

What size air compressor do I need?

You can use the following formula to figure out the size air compressor you need:

The Number of tools being used x the number of nails each tool will drive per minute x 1.2 (safety factor) x the Amount of Air per Shot (SCFM) at the operating pressure (psi). This number is found on the chart in the tool schematic and parts list provided with the nailer.

For example, if you have two F-350S tools each driving 20 nails per minute with the compressor set at 90 PSI you get: 2 x 20 x 1.2 x .082 = 3.95. The compressor needs to deliver 3.95 CFM at 90 PSI. If you operate the tool at 120 PSI at the same rate the number will be higher: 2 x 20 x 1.2 x .108 = 5.2 CFM. When selecting an air compressor be aware that as the air pressure (PSI) increases, the delivery rate (CFM) goes down. Most compressors will rate the CFM at 50 PSI and at 100 PSI.

What is the difference between PSI and CFM?

PSI or Pounds per Square Inch is an amount of force. CFM or Cubic Feet per Minute is a delivery rate. In terms of how a pneumatic tools works, the greater the PSI the harder the tool will drive and the greater the CFM the faster the tool will work.

Can I use something other than Paslode Degreaser Cleaner to clean my nailer?

Paslode Degreaser Cleaner is specially formulated for Paslode Cordless and pneumatic nailers. Other products may damage electrical components, plastic parts, and rubber parts. They may also leave a residue which could cause damage to the nailer or injury to the operator of the nailer.

What type of oil should I use after the nailer has been cleaned?

Use only Paslode Cordless Tool Lubricating Oil part number 401482. It is specially formulated to withstand the high temperatures generated by Cordless nailers. Using other oils can cause the rapid build-up of combustion residue leading to poor nailer performance and more frequent cleanings.

Will other brands of nails work in my Paslode Nailer?

Paslode nailers and fasteners are engineered to work together as a system. Other brands of nails may not be designed or manufactured to the same specifications or quality standards as Paslode. Using nails that do not meet Paslode’s specification may cause damage to the tool and injury to the operator or bystanders, and may void warranty.

The nailer fires but no nail is being driven. What causes this?

There are several things that could cause a nailer to “blank fire”:

If your tool does not have a lockout, check that you haven’t run out of fasteners
There may be a nail jam preventing the fasteners from moving forward. For information on clearing a nail jam, visit the Tools Manuals page and reference your Tool's Operating Manual
Cordless nailers may require cleaning. If the tool has driven 10,000 nails or more, it may require cleaning.

What size air fitting do I need for my tool?

Tools should always use a male air fitting which allows the air to discharge from the tool when the air hose is removed. As a rule of thumb, framing tools use 3/8” air fittings and smaller tools such as trim nailers use 1/4” air fittings. The tool will be threaded for either a 3/8” N.P.T or a ¼” N.P.T. air fitting.

How do I find a Paslode Authorized Service Center?

To locate your nearest service location, click the "Find Service Center" tab on the "Where to Buy" page, and enter your zip code. Paslode recommends that tools needing service be repaired through your local Factory Authorized Service Network.
