Item #: 816000

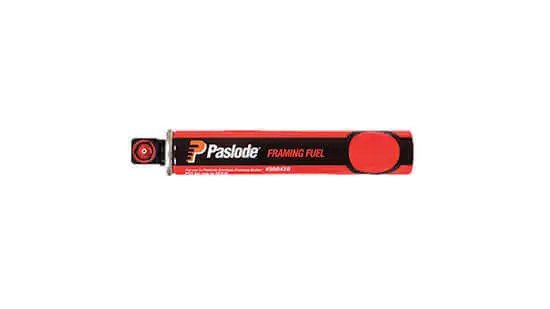

Tall Red Framing Fuel

THE FUEL YOUR NAILER NEEDS FOR JUST PENNIES PER SHOT.

Paslode fuel cells give you the power to drive up to 1,000 nails and are easy to load. Use Paslode fuel cells as part of your nailing or stapling system to keep going until the job is done.

Performance without the waste.

Maximum Performance for Paslode’s Impulse Fuel Powered Cordless Framing Nailer

NOTE: This product is being replaced by Framing Fuel All-Season (#816008) – for up to 20% more shots/cell, improved performance, All-Season temperature range, and the flexibility of a single-pack that includes an adapter for older models of Paslode framing nailers.

Where to Buy

816000

Tall Red Framing Fuel

Where to Buy

Features & Applications

Features

Ready to use when cap is clicked from front-to-back
For fuel life, check the “Best Used Before” date printed on the bottom of the can
For use with Paslode or other Fuel Powered Cordless Framing Nailers
(Not for use with the CF325 or CF325Li Fuel Powered Cordless Framing Nailer)

Manuals & Specs

Manuals & Documentation

Product Specs

Item #

816000

Quantity

2 Packs

Size

1.32 oz

Fuel Life

18 months (from date of manufacture)

#/Nails

1,200 approximately

FAQs

How do I order a part online?

Genuine Paslode replacement parts, tune up kits, accessories, and repair service can be purchased online at itwconstructionparts.com.

Do Fuel Cells have a shelf life?

Fuel cells have a “Best Used By” date printed on the bottom of the can. A fuel cell will often work beyond that date, but if a tool starts to work intermittently it could be because the fuel cell has expired. An expired fuel cell has lost enough internal pressure to degrade its performance.

We recommend buying only enough fuel to complete the job. Always check the date on the bottom of the can before purchasing or using a fuel cell to ensure it is not past the best used by date.

How do I know when a Fuel Cell is empty?

First make certain you are away from any open flames or heating elements. Hold the fuel cell upside down so the black valve is toward the floor. Push the white stem on the black valve several times against a hard surface. Each time you depress the white stem a small “puff” of fuel should be dispensed. If fuel does not come out, the cell is empty.

What does it mean when the lights on the charger flash red and green?

It is normal for the lights on the charger to flash red/green for up to 20 minutes. The charger is slowly building the charge in the battery until the battery is able to accept the full output of the charger. This protects the battery and increases the life of the battery. If the lights continue to flash red/green after 20 minutes but go to a steady green when the battery is removed, it is likely there is a problem with the battery.

How do I find a Paslode Authorized Service Center?

To locate your nearest service location, click the "Find Service Center" tab on the "Where to Buy" page, and enter your zip code. Paslode recommends that tools needing service be repaired through your local Factory Authorized Service Network.
